The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.
The Carrying Capacity You Need
The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.
Designed to Be Used—Often
The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.
Modular & Customizable
Choose from a vast array of accessories to turn your Quick Haul into the ideal tool for all your jobs. The Quick Haul’s accessories ecosystem offers perfect-fit options for your commute, your kid’s school run, doggy playdates, errands, and lots more.

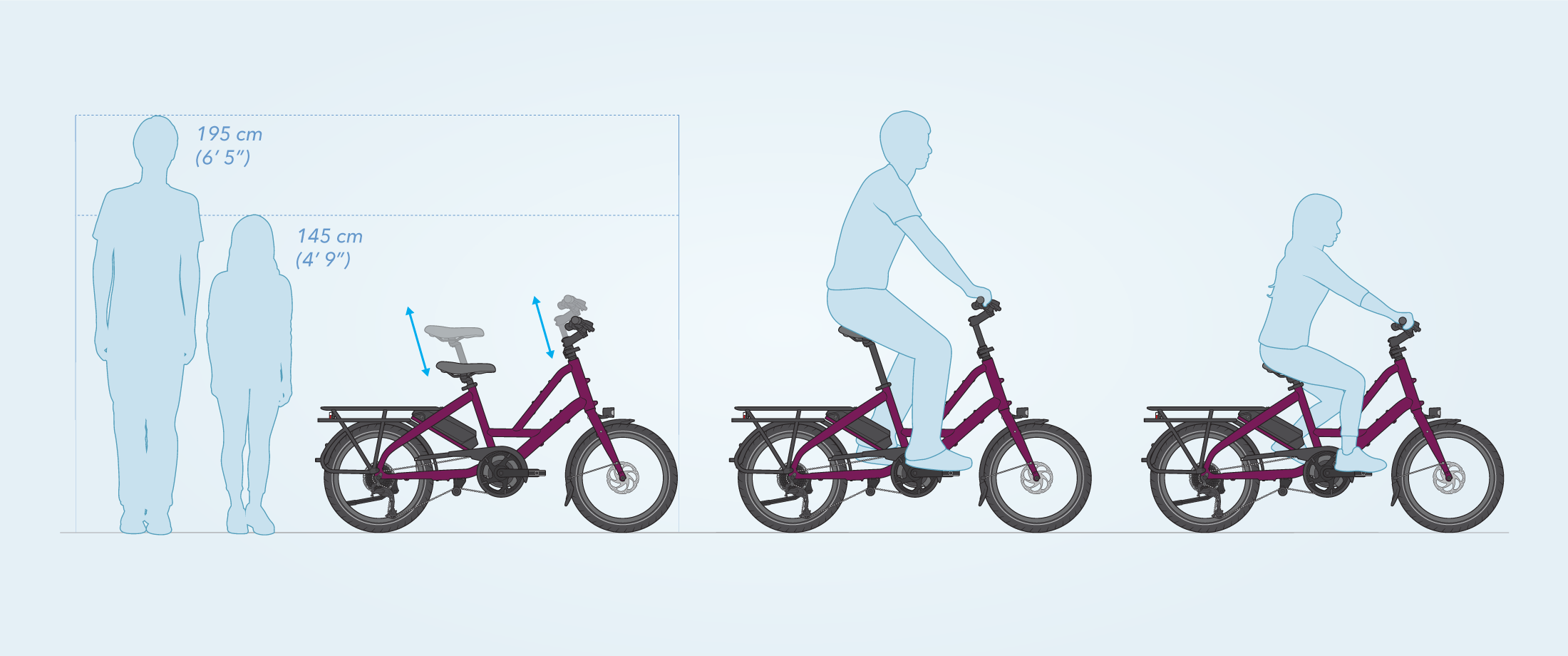

If you were buying a car, you’d assume your spouse, partner, teenager, and best friend could use it, too. The same should go for your e-bike, which is why we outfitted the Quick Haul with an adjustable stem and seatpost to fit riders 160 - 195 cm (5’3” - 6’5”).
Shorter rider? No problem. The Quick Haul also fits riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter seatpost (350 mm).
Fun to Ride
The Quick Haul features the unbeatably smooth Bosch motor system paired with stable yet responsive geometry. The result: a bike that’s as fun to ride as it is useful. The cockpit offers a comfy riding position similar to your favorite hybrid or trekking bike—perfect for turning everyday chores into mini adventures.
Built to Last
Our philosophy is to keep our bikes on the road for as long as possible, not to create disposable products that are built to fail. We start with intentional design choices that make the bike serviceable and safe—and end up with a reliable vehicle you can use day in, day out. Then, we back it up with great local service and a 10-year warranty for peace of mind.
WHAT MAKES IT A P9 PERFORMANCE?
QUICK HAUL HIGHLIGHTS
|speeds||1 x 9|
|gear inches||2.45 - 7.57 m|
|frame sizes||One size|
|distance (seatpost to handlebar)||60 - 64 cm|
|distance (saddle to pedal)||68 - 110 cm|
|suggested rider height||160 - 195 cm|
|max gross vehicle weight||150 kg|
|max rider weight||120 kg|
|frame||Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved - 150 kg|
|fork||Cargo, steel, EFBE approved - 150 kg|
|stem||Speedlifter, 150 mm extension, 3D Forged stem, 31.8|
|headset||TH, cartridge bearings|
|handlebar||Low riser, 31.8, 6061-AL|
|grips/bar tape||Velo ergonomic, lock-on|
|seatpost||31.6 mm, 6061-AL, micro-adjust clamp|
|seatpost clamp||Tern Collar|
|front brake||Shimano, hydraulic disc 180 mm|
|rear brake||Shimano, hydraulic disc 160 mm|
|brake levers||Shimano, hydraulic disc|
|brake cable & housing||Shimano, hydraulic discWHEELS|
|front hub||Shimano disc|
|rear hub||Shimano disc|
|spokes and nipples||Stainless steel|
|rims||Kinetix Comp, for disc|
|tires||Schwalbe Big Apple, 55-406, puncture protection, ReflexTRANSMISSION|
|shifter(s)||Shimano Alivio, 1 x 9 spd, trigger|
|rear derailleur||Shimano Alivio Shadow|
|crankset||Tern custom, forged 6061-AL crankarm|
|motor||Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 45 km/h|
|bottom bracket||Motor integrated|
|chain||KMC for eBike, 9 spd|
|pedals||Urban with non-slip surface|
|battery||Bosch PowerPack 400Wh|
|charger||Compact Charger, 100-240V, 2A|
|kickstand||Pletscher design, rear mount|
|luggage socket||Combo Mount|
|front light||Herrmans, 120 lumens|
|fenders||Chromeplastic, stainless hardware|
|rack(s)||Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity|
|Speeds||1 x 9|
|Gear Inches||2.45 - 7.57 m|
|Frame Sizes||One size|
|DISTANCE (SEATPOST TO HANDLEBAR)||60 - 64 cm|
|DISTANCE (SADDLE TO PEDAL)||68 - 110 cm|
|Suggested Rider Height||160 - 195 cm|
|MAX GROSS VEHICLE WEIGHT||150 kg|
|Max Rider Weight||120 kg|
|FRAME||Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved - 150 kg|
|Fork||Cargo, steel, EFBE approved - 150 kg|
|Stem||Speedlifter, 150 mm extension, 3D Forged stem, 31.8|
|Headset||TH, cartridge bearings|
|Handlebar||Low riser, 31.8, 6061-AL|
|GRIPS/BAR TAPE||Velo ergonomic, lock-on|
|Seatpost||31.6 mm, 6061-AL, micro-adjust clamp|
|Seatpost Clamp||Tern Collar|
|Front Brake||Shimano, hydraulic disc 180 mm|
|Rear Brake||Shimano, hydraulic disc 160 mm|
|Brake Levers||Shimano, hydraulic disc|
|Brake Cable & Housing||Shimano, hydraulic discWHEELS|
|FRONT HUB||Shimano disc|
|REAR HUB||Shimano disc|
|Spokes and Nipples||Stainless steel|
|RIMS||Kinetix Comp, for disc|
|Tires||Schwalbe Big Apple, 55-406, puncture protection, ReflexTRANSMISSION|
|Shifter(s)||Shimano Alivio, 1 x 9 spd, trigger|
|Rear Derailleur||Shimano Alivio Shadow|
|Crankset||Tern custom, forged 6061-AL crankarm|
|Motor||Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 45 km/h|
|Bottom Bracket||Motor integrated|
|Chain||KMC for eBike, 9 spd|
|PEDALS||Urban with non-slip surface|
|Battery||Bosch PowerPack 400Wh|
|Charger||Compact Charger, 100-240V, 2A|
|Kickstand||Pletscher design, rear mount|
|Luggage Socket||Combo Mount|
|Front Light||Herrmans, 120 lumens|
|Fenders||Chromeplastic, stainless hardware|
|Rack(s)||Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity|
|Max Assisted Speed||45km/h|
