Axiom Journey With Spring Rack

71.99

SIZE/COLOUR

Axiom Journey Rack With Spring

QUANTITY:

INTEREST FREE INTEREST FREE

View which Evo Showrooms have stock

Finance Options

4 payments from $18.00

See all payment options

DESCRIPTION
DELIVERY

Racks don’t need to be expensive to be exceptional. They just need to be designed and built right. This spring-clamp-equipped pannier rack has a deep set of well-thought-out features for today’s bicycle and possesses industry leading weight capacity and durability.

CONSTRUCTION

Hand-welded, tubular 10.2mm 6061 T6 aluminum.

Steel, spring-loaded top clamp.

MOUNTING SYSTEM

Extra-long (280mm), adjustable Versalock® arms (for frames with eyelets).

FEATURES

Great for attaching flexible loads such as jackets, backpacks, pool bags, sandals, etc...
Triple stay design has a sweepback frame that prevents pannier bags from bouncing into your wheel while you ride.
Suitable for frames with accommodations for racks (eyelets).
Generous platform size is optimized for top loading things like trunk bags and rear baskets.
Designed for modern bicycles by sitting your load further back over the wheel where it is supposed to sit.
Increased heel clearance.
Enhanced trunk bag / seat clearance improves trunk bag function, especially on smaller frames.
280mm Versalock® arms are long enough to fit even the smallest of bikes.
Versalock® arms can be DIY bent up to 30 degrees without reducing strength.
Double welded for extra strength and long-term durability.
Ample room for a full range of fender styles
Reflector/light mount, Frame bolts included

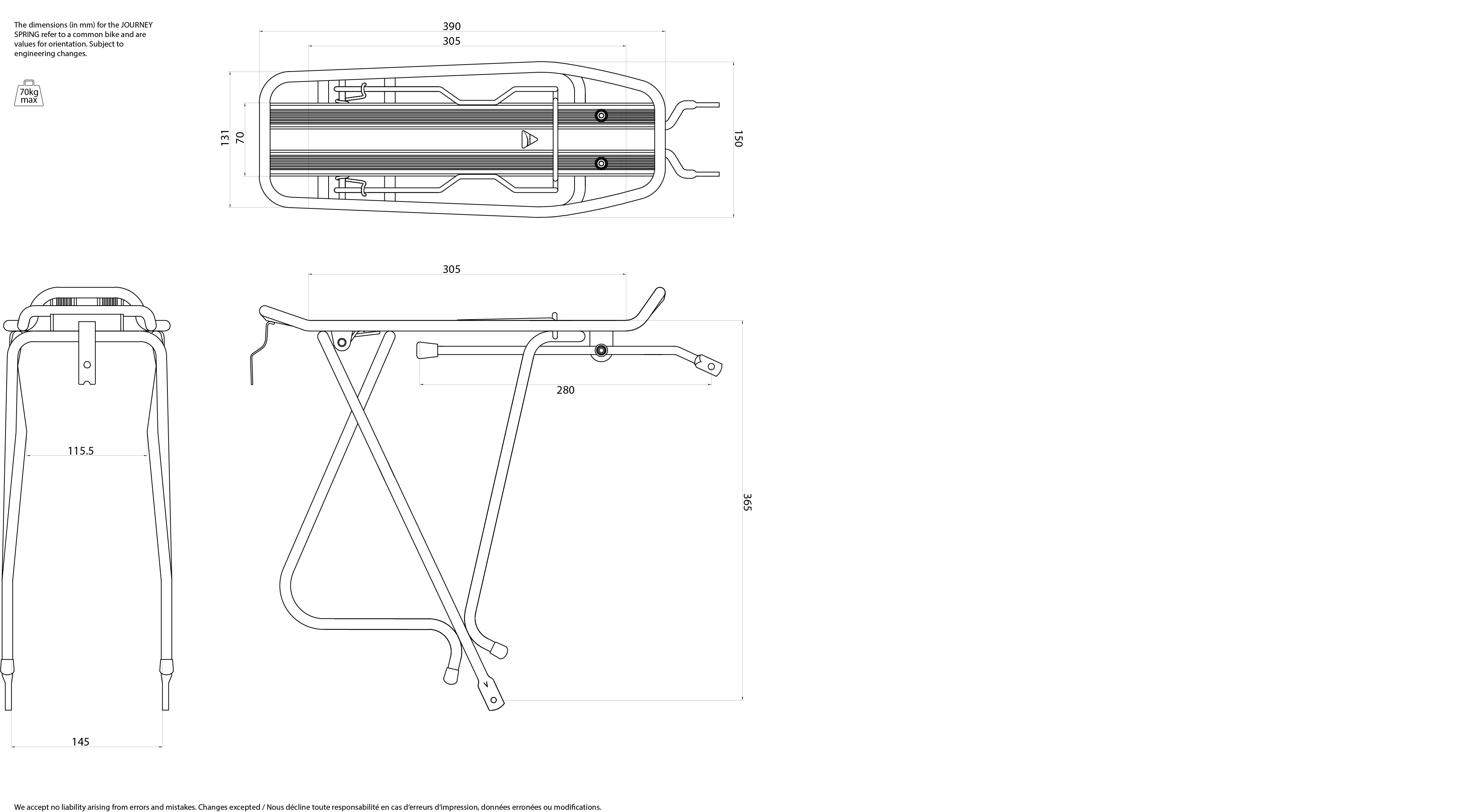

SPECIFICATIONS

compatibility	26”, 27”, 700c
stay length	365mm / 14.4”
platform size	390x150mm / 15.4”x5.9”
weight	926g / 2.04 lbs (including hardware)
capacity	70 kg / 154 lbs

SPECIFICATIONS+

SPECIFICATIONS

Compatibility	26”, 27”, 700c
Stay length	365mm / 14.4”
Platform Size	390x150mm / 15.4”x5.9”
Weight	926g / 2.04 lbs (including hardware)
Capacity	70 kg / 154 lbs
