2027 Whyte Karve RS E-MTB 800Wh Battery - Black/Grey

2027 Whyte Karve RS E-MTB 800Wh Battery - Black/Grey

Name: 2027 Whyte Karve RS E-MTB 800Wh Battery - Black/Grey
Brand: Whyte Bikes
Price: 12499 NZD
Availability: InStock

DJI Avinox M2S Drive Unit

12499.00

Up to {{finance.term}} Months Interest Free from {{finance.dollars}}.{{finance.cents}} per week with GEM^

*Terms & Conditions apply. ^excludes fees

Product Code: {{selected?.id}}

CHOOSE SIZE/COLOUR

{{variation.name}} (${{formatPrice(variation.price.price)}}) (Pre-order: ETA {{variation.preorderDate}}) ({{variation.supplierMessage}})

CHOOSE AMOUNT

${{variation.price.min}} ${{variation.price.max}}

AMOUNT:

QUANTITY:

INTEREST FREE INTEREST FREE

Save to wishlist

View which Evo Showrooms have stock

Maintenance Packages

What is a service plan?

Gold service plan $199 - Recommended
Silver service plan $159
Bronze service plan $129
No, I'll service my own bike

Maintenance Packages

What is a service plan?

Finance Options

12 Months Interest Free

Gem Visa / Gem CreditLine
12 MONTHS INTEREST FREE
Minimum purchase Amount $250. Minimum monthly repayments required. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Prevailing interest rate (currently Gem Visa 29.95% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. Paying only the minimum monthly repayment of 3% of the outstanding monthly balance or $20 (whichever is more), will not be sufficient to repay the purchase amount(s) within the promotional period. Amount payable will be shown on your monthly statement. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

12 MONTHS NO PAYMENTS, NO INTEREST
Minimum purchase Amount $250. 12 months interest free with no repayments during the stated period. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Minimum purchase $250. Payment for your purchase will be deferred for the stated period. During this period, no interest will accrue and no monthly payments need to be made. If you do not pay the outstanding balance in full before the end of the deferred payment period, the amount payable will accrue interest and will be included in your monthly statement. Prevailing interest rate (currently Gem Visa 29.95% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

Q Mastercard / Q Card
12 months interest free is available on Long Term Finance purchases in-store and online . Min spend $250. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Minimum monthly payments required. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited.

Learn More

36 Months Interest Free

Gem Visa / Gem CreditLine
36 MONTHS INTEREST FREE
36 Months Interest Free with [Gem Visa/Gem CreditLine] as [an instalment plan advance (Gem Visa)/ a CreditLine Select advance (Gem CreditLine)]. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Minimum purchase $750. Prevailing interest rate (currently Gem Visa 29.95% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. Paying only the minimum monthly repayment of 3% of the outstanding monthly balance or $20 (whichever is more), will not be sufficient to repay the purchase amount(s) within the promotional period. Amount payable will be shown on your monthly statement. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

36 MONTHS INTEREST FREE WITH EQUAL MONTHLY PAYMENTS
36 months of equal interest free instalments with [Gem Visa/Gem CreditLine] as [an instalment plan advance (Gem Visa)/ a CreditLine Select advance (Gem CreditLine)]. Amount payable will be shown on your monthly statement. Minimum purchase $250. Credit and lending criteria and fees, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Prevailing interest rate (currently Gem Visa 29.95% p.a./ Gem CreditLine 29.95%p.a.) applies after any interest free term ends. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

Q Mastercard / Q Card
36 months interest free is available on Long Term Finance purchases in-store and online . Min spend $250. Offer valid to 30/11/24. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Minimum monthly payments required. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited.

Learn More

See all payment options

DESCRIPTION+

Furiously fast, powerfully capable

Powerful, agile and balanced, Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider. Confident and highly capable, it’s built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Controlled handling, strong, responsive support and a planted feel let you ride with commitment and carry speed with confidence. Designed, developed and proven in the UK, Karve RS is built to be dependable, resilient and ready to perform all year-round. All so you can turn every ride up to 11 – and keep it there.

Highlights

160mm front + 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks.
Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
SRAM Eagle 90 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
Avinox DP100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
800Wh internal battery so you can ride further.
29in trail-smoothing wheels front and rear + MX ready.

Ideal for... Enthusiast riders who want a light, mid-travel full-power enduro-capable eMTB that delivers the very best handling and performance possible for maximum thrills – everywhere.

Charge time (800Wh): 80% in 4hr 54mins approx. from empty, and to 100% in 6hrs 11mins approx. with 4A charger.

****NOTE: This bike is available for purchase online, but must be picked up from an approved store.

SPECIFICATIONS

bottom bracket	N/A
stem	Whyte, 35mm Extension, 35mm Bar Bore
grips	Whyte Enduro lock-on
pedals	Fibre reinforced composite platform
front mech	N/A
cassette	SRAM XS 1270, T-Type, 10-52T, 12 speed
chain	SRAM Eagle 70, 12 speed
crankset	Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type
seatpost	TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
seat	Whyte Custom
charger	Charger 4A (230V)
battery	Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
drive unit	Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
frame	Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
rear hub	Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub
front hub	Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole
spokes	14g stainless black, brass nipples
bar	Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
brake levers	SRAM Maven Base
headset	FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings
tyres	Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
fork	RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
rear shock	RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte
rims	Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear
brakes front	SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor
shift levers	SRAM Eagle 70, 12 speed
brakes rear	SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotor
rear mech	SRAM Eagle 90 T-Type mechanical, 12 speed

SPECIFICATIONS+

SPECIFICATIONS

Frame Material	Carbon
Groupset Brand	Sram
Fork Brand	Rockshox
Bottom Bracket	N/A
Shifting Type	Mechanical
Pedals Included	No
Max Assisted Speed	32km/h
Ride Style	Enduro
Brake Type	Hydraulic Disc Brake
Drivetrain Gearing	1 x 12
Motor Type	Mid-Drive Motor
Groupset Model	Eagle 70 T-Type
Frame Style	Step-Over
Motor Brand	DJI Avinox
Battery Brand	DJI Avinox
Stem	Whyte, 35mm Extension, 35mm Bar Bore
GRIPS	Whyte Enduro lock-on
PEDALS	Fibre reinforced composite platform
Front Mech	N/A
Cassette	SRAM XS 1270, T-Type, 10-52T, 12 speed
Chain	SRAM Eagle 70, 12 speed
Crankset	Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type
Seatpost	TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
SEAT	Whyte Custom
Charger	Charger 4A (230V)
Battery	Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
DRIVE UNIT	Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
FRAME	Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
REAR HUB	Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub
FRONT HUB	Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole
SPOKES	14g stainless black, brass nipples
BAR	Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
Brake Levers	SRAM Maven Base
Headset	FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings
TYRES	Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
Fork	RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
REAR SHOCK	RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte
RIMS	Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear
Brakes Front	SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor
SHIFT LEVERS	SRAM Eagle 70, 12 speed
Brakes Rear	SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotor
Rear Mech	SRAM Eagle 90 T-Type mechanical, 12 speed

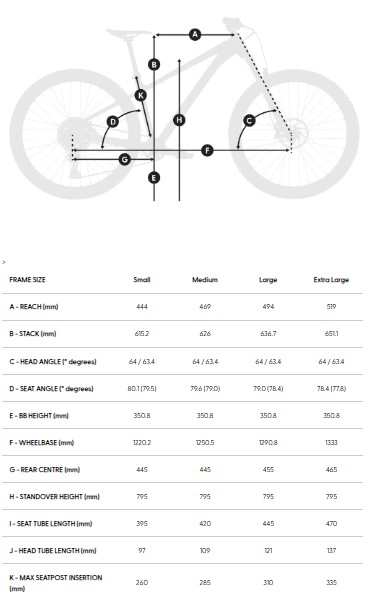

GEOMETRY+

DELIVERY+

EVO HOME DELIVERY

Ordering a bike from Evo? If you choose the option Evo Home Delivery at the checkout your order will be personally delivered to you, by an Evo Crew Member, who will also be able to answer any questions you have about your new bike. If you choose Evo Delivery your bike will be delivered completely built, tuned and ready to ride! We are also able to offer Evo Home Delivery on previously restricted brands such as Giant & Trek!

Our home delivery charge is only $45 for 15km and $2 per km after that.

Traditional Courier vs Evo Home Delivery

LEARN MORE

CLICK & COLLECT FROM AN EVO SHOWROOM

Free for all orders over $149. Orders under $149 a $8.99 flat shipping & handling fee applies. Order and pay online and collect everything from one of our showrooms. Just select which store you would like to collect from at checkout. Find out more about Click & Collect here.

LEARN MORE

* All specifications listed are subject to change without notice. Please note that our specifications may be impacted by manufacturer component substitution changes caused by high global demand for bikes and resulting supply chain issues in the bike industry. We recommend confirming the specifications with your local Evo Cycles showroom if you have any questions.

Bike Weight: Many brands strive to list the lowest possible weight, but in reality weight can vary based on frame size, finish, hardware and accessories. The most accurate way to determine any bike's weight is to have your local showroom weigh it for you.
