Designed to Conquer
The Raise 2026 is designed for those who dream of conquering every summit and soaring down every descent. This climbing bike combines lightness, stiffness, and comfort thanks to its carbon frame and its integrated handlebar, delivering a modern and aerodynamic look.
Built to tackle major climbs and long distances at demanding paces, the Raise delivers spectacular efficiency without compromising comfort. Agile and responsive on ascents, stable and fast on descents, it is the perfect ally to push your limits and reach higher, faster.
MAIN FEATURES
Balanced Performance for Every Ride
The Raise 2026 SL frame is made from high-performance carbon, carefully selected to offer the perfect balance between lightness, stiffness, and comfort. Designed for cyclists seeking efficiency without giving up comfort, it is ideal for demanding training sessions as well as long days on the asphalt.
Its structure provides excellent power transfer while maintaining a stable, smooth ride. Thanks to its optimized geometry and intelligent use of carbon, the SL frame turns every pedal stroke into forward motion, adapting to various terrain profiles with total confidence.

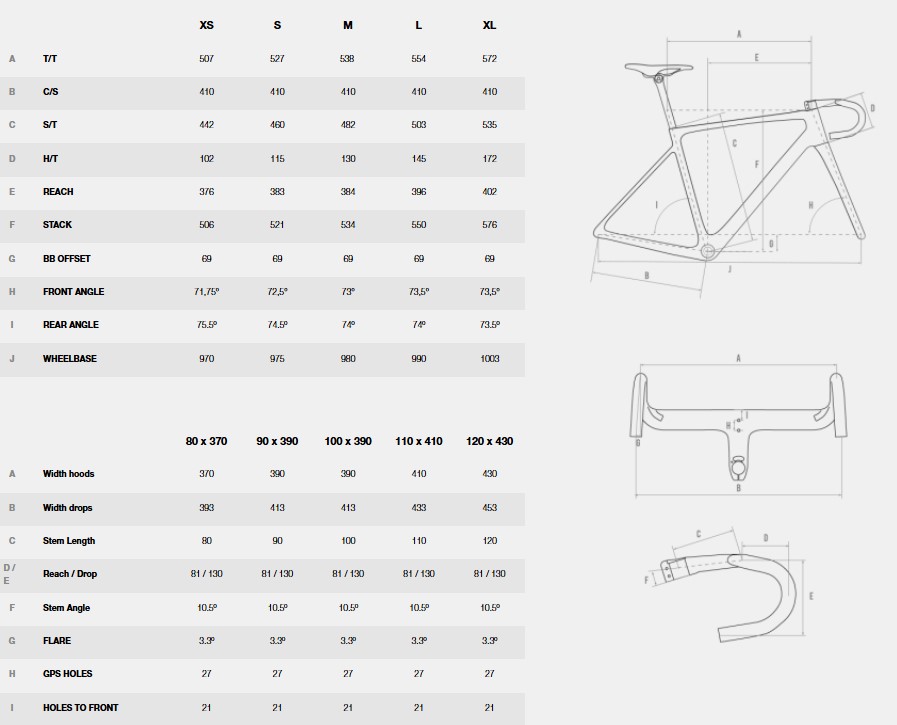

Refined Geometry, Elevated Performance
Aerodynamic and comfortable geometry for long distances. Greater agility and responsiveness for superior performance on every ride.
Clean Aesthetics and Maximum Aerodynamics
The Raise’s fully internal cable routing eliminates any visible elements, creating an impeccably minimalist design that breathes speed.
Every line, every junction, and every detail has been carefully studied for total integration, optimizing not only aesthetics but also aerodynamics and the bike’s overall performance.
TOTAL CONTROL AND ELEGANCE IN EVERY TURN
The integrated carbon cockpit reduces weight and increases stiffness for more precise, responsive handling. With a reach of 81 mm, a drop of 130 mm, and a 10.5° stem angle, it offers an efficient and comfortable position tailored to every size.
Its ergonomic design and completely hidden cabling reinforce a clean, aerodynamic look that elevates the riding experience.
AERODYNAMIC CARBON SEATPOST
Light, stiff, and profile-optimized to reduce wind resistance and improve efficiency with every pedal stroke
HIGH-PERFORMANCE FORK
Made from high-modulus carbon, it combines stiffness, lightness, and precision in cornering with greater comfort and control on the road.
| headset | Totally Internal Cable routing |
| frame | Carbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142 |
| fork | Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 |
| rear derailleur | Sram Force AXS, 12-Speed |
| derailleur | Sram Force AXS, 12-Speed |
| shifters | Sram Force AXS |
| crankset | Sram Force Chainring 48-35T 2x12-Speed, Powermeter Crankset / XS size 160 mm / S size 165 mm / M size 170 mm / L size 172,5 mm / XL size 175 mm |
| cassette | Sram Force, 10-33T |
| brakes | Sram Force AXS, Hydraulic disc Paceline 160 mm / 140 mm |
| tires | Pirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall |
| hubs | Zipp 176 DB bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm |
| wheels | Zipp 303 S Tubeless Disc-brake, 45mm Tubeless ready Carbon rim |
| handlebar | Carbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm |
| seatpost | Aerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm |
| seat | Fizik Vento Antares R5 |
| Frame Material | Carbon |
| Fork Material | Carbon |
| Groupset Brand | Sram |
| Pedals Included | No |
| Groupset Model | Force AXS |
| Ride Style | Aero Race |
| Brake Type | Hydraulic Disc Brake |
| Drivetrain Gearing | 2 x 12 |
| Shifting Type | Electronic |
| Headset | Totally Internal Cable routing |
| FRAME | Carbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142 |
| Fork | Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 |
| Rear Derailleur | Sram Force AXS, 12-Speed |
| DERAILLEUR | Sram Force AXS, 12-Speed |
| Shifters | Sram Force AXS |
| Crankset | Sram Force Chainring 48-35T 2x12-Speed, Powermeter Crankset / XS size 160 mm / S size 165 mm / M size 170 mm / L size 172,5 mm / XL size 175 mm |
| Cassette | Sram Force, 10-33T |
| BRAKES | Sram Force AXS, Hydraulic disc Paceline 160 mm / 140 mm |
| Tires | Pirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall |
| HUBS | Zipp 176 DB bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm |
| Wheels | Zipp 303 S Tubeless Disc-brake, 45mm Tubeless ready Carbon rim |
| Handlebar | Carbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm |
| Seatpost | Aerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm |
| SEAT | Fizik Vento Antares R5 |
