2026 Trek Rail+ 5 Electric MTB 800Wh Battery - Viper Red

2026 Trek Rail+ 5 Electric MTB 800Wh Battery - Viper Red

Name: 2026 Trek Rail+ 5 Electric MTB 800Wh Battery - Viper Red
Brand: Trek
Price: 8834.05 NZD
Availability: InStock

Electric Mountain Bike

8834.05

Up to {{finance.term}} Months Interest Free from {{finance.dollars}}.{{finance.cents}} per week with GEM^

*Terms & Conditions apply. ^excludes fees

Product Code: {{selected?.id}}

CHOOSE SIZE/COLOUR

{{variation.name}} (${{formatPrice(variation.price.price)}}) (Pre-order: ETA {{variation.preorderDate}}) ({{variation.supplierMessage}})

CHOOSE AMOUNT

${{variation.price.min}} ${{variation.price.max}}

AMOUNT:

QUANTITY:

INTEREST FREE INTEREST FREE

View which Evo Showrooms have stock

Maintenance Packages

What is a service plan?

Gold service plan $199 - Recommended
Silver service plan $159
Bronze service plan $129
No, I'll service my own bike

Maintenance Packages

What is a service plan?

Finance Options

12 Months Interest Free

Gem Visa / Gem CreditLine
12 MONTHS INTEREST FREE
Minimum purchase Amount $250. Minimum monthly repayments required. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Prevailing interest rate (currently Gem Visa 29.49% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. Paying only the minimum monthly repayment of 3% of the outstanding monthly balance or $20 (whichever is more), will not be sufficient to repay the purchase amount(s) within the promotional period. Amount payable will be shown on your monthly statement. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

12 MONTHS NO PAYMENTS, NO INTEREST
Minimum purchase Amount $250. 12 months interest free with no repayments during the stated period. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Minimum purchase $250. Payment for your purchase will be deferred for the stated period. During this period, no interest will accrue and no monthly payments need to be made. If you do not pay the outstanding balance in full before the end of the deferred payment period, the amount payable will accrue interest and will be included in your monthly statement. Prevailing interest rate (currently Gem Visa 29.49% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

Q Mastercard / Q Card
12 months interest free is available on Long Term Finance purchases in-store and online . Min spend $250. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Minimum monthly payments required. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited.

Learn More

36 Months Interest Free

Gem Visa / Gem CreditLine
36 MONTHS INTEREST FREE
36 Months Interest Free with [Gem Visa/Gem CreditLine] as [an instalment plan advance (Gem Visa)/ a CreditLine Select advance (Gem CreditLine)]. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Minimum purchase $750. Prevailing interest rate (currently Gem Visa 29.49% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. Paying only the minimum monthly repayment of 3% of the outstanding monthly balance or $20 (whichever is more), will not be sufficient to repay the purchase amount(s) within the promotional period. Amount payable will be shown on your monthly statement. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

36 MONTHS INTEREST FREE WITH EQUAL MONTHLY PAYMENTS
36 months of equal interest free instalments with [Gem Visa/Gem CreditLine] as [an instalment plan advance (Gem Visa)/ a CreditLine Select advance (Gem CreditLine)]. Amount payable will be shown on your monthly statement. Minimum purchase $250. Credit and lending criteria and fees, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Prevailing interest rate (currently Gem Visa 29.49% p.a./ Gem CreditLine 29.95%p.a.) applies after any interest free term ends. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

Q Mastercard / Q Card
36 months interest free is available on Long Term Finance purchases in-store and online . Min spend $250. Offer valid to 30/11/24. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Minimum monthly payments required. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited.

Learn More

See all payment options

DESCRIPTION+

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.

****NOTE: This bike is available for purchase online, but must be picked up from an approved store.

SPECIFICATIONS

frame	Alpha Platinum Aluminium, UDH, Boost148, 12 mm thru axle, 160 mm travel
fork	RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
shock	RockShox Deluxe Select+ RT, 205 mm x 65mm
hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
hub rear	Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
skewer rear	Bontrager Switch thru-axle, removable lever
brake rotor	Shimano RT66, 6-bolt, 203 mm
tyre	Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
tyre part	Bontrager TLR sealant, 180 ml/6 oz
rim strip	Bontrager TLR
max tyre size	Frame - 27.5x2.60", Fork - See manufacturer
charger	Bosch standard 2A, 230V, smart system
controller	Bosch System Controller BRC3100, smart system
motor	Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
shifter	Shimano Deore M6100, 12-speed
rear derailleur	Shimano Deore M6100, long cage
crank arm	Ethirteen Espec Plus, 160 mm length
cassette	Shimano Deore M6100, 10-51, 12-speed
chain	Shimano Deore M6100, 12-speed
pedal	VP-536 nylon platform
max. chainring size	1x - 36T
saddle	Bontrager Verse P3, steel rails
seatpost	TranzX JD-YSI34, 100 mm travel (S) / 170mm travel (M, L, XL), internal routing, 34.9 mm
handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
grips	Bontrager XR Trail Comp, nylon lock-on
stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
head set	Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
rotor size	Max brake rotor sizes – Frame - 220 mm, Fork - see fork manufacturer
mudguard	Trek 27.5" custom fender
weight	M – 25.28 kg/55.74 lb (with TLR sealant, no tubes)
weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
frame features	Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP

SPECIFICATIONS+

SPECIFICATIONS

Frame Material	Alloy
Fork Material	Suspension
Brake Type	Hydraulic Disc Brake
Groupset Brand	Shimano
Groupset Model	Deore
Fork Brand	Rockshox
Motor Brand	Bosch
Max Assisted Speed	32km/h
Battery Brand	Bosch
Motor Type	Mid-Drive Motor
Frame Style	Step-Over
Shifting Type	Mechanical
Pedals Included	No
Drivetrain Gearing	1 x 12
Ride Style	Enduro
FRAME	Alpha Platinum Aluminium, UDH, Boost148, 12 mm thru axle, 160 mm travel
Fork	RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
Shock	RockShox Deluxe Select+ RT, 205 mm x 65mm
Hub Front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
BRAKE ROTOR	Shimano RT66, 6-bolt, 203 mm
Tyre	Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
MAX TYRE SIZE	Frame - 27.5x2.60", Fork - See manufacturer
Charger	Bosch standard 2A, 230V, smart system
CONTROLLER	Bosch System Controller BRC3100, smart system
Motor	Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Shifter	Shimano Deore M6100, 12-speed
Rear Derailleur	Shimano Deore M6100, long cage
Crank Arm	Ethirteen Espec Plus, 160 mm length
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
PEDAL	VP-536 nylon platform
Max. chainring size	1x - 36T
Saddle	Bontrager Verse P3, steel rails
Seatpost	TranzX JD-YSI34, 100 mm travel (S) / 170mm travel (M, L, XL), internal routing, 34.9 mm
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
GRIPS	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head Set	Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
BRAKE	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Rotor size	Max brake rotor sizes – Frame - 220 mm, Fork - see fork manufacturer
MUDGUARD	Trek 27.5" custom fender
Weight	M – 25.28 kg/55.74 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Frame Features	Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP

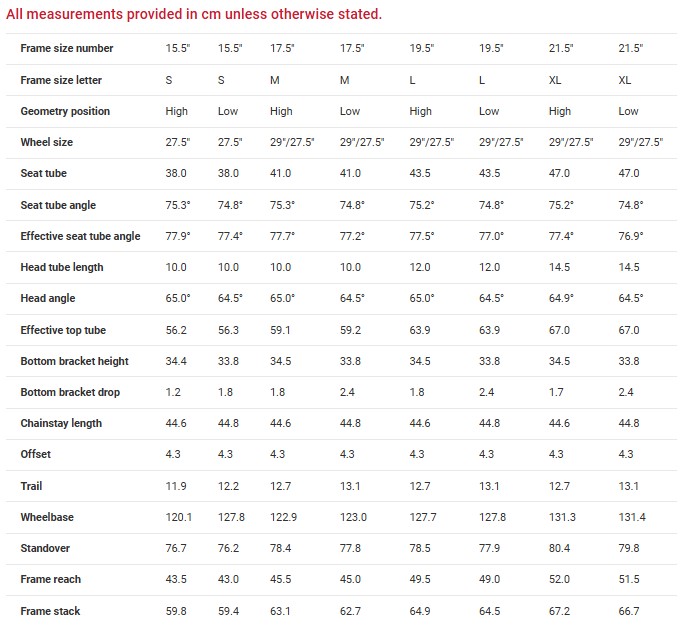

GEOMETRY+
