Name: 2026 Merida eOne Forty 475 EQ High Cream
Price: 8499 NZD
Availability: SoldOut

2026 Merida eOne Forty 475 EQ High Cream

DESCRIPTION
GEOMETRY

DESCRIPTION+

Tackle any trail ahead of you. The eONE-FORTY 475 EQ is fully equipped for the urban jungle, with mudguards, a rack and lights, but the tough, trail-capable aluminium frame has a removable 712 Wh battery plus optional 360 Wh range extender to boost your riding horizons. Our award-winning suspension platform and rider focused geometry concept will give you the confidence to tackle any trail ahead, while the Suntour Zeron 36 fork and shock plus robust but precise Shimano CUES 10-speed drivetrain will be long-lasting partners.

The latest eONE-FORTY has a big playground. That's not just because of the 712 Wh battery that can be boosted with a 360 Wh range extender - it's because it's an incredibly versatile machine that can tackle rugged mountain bike trails one day and be your city-ready SUV partner the next. With a suspension platform and geometry derived from our award-winning trail and enduro bike range, it's got peerless off-road performance and handling that's confident and capable wherever you take it. With our proven suspension design giving 143 mm of rear wheel travel and 150 mm up front, it also features our simplified AGILOMETER sizing system that allows you to choose the handling you want thanks to super low standover heights. Go long for more off-road stability, go shorter for more agility. We also offer the eONE-FORTY in fully-equipped EQ models, which come with lights, mudguards and a rack as standard, making it the perfect rugged urban partner. range extender available separately, 630 Wh battery and no range extender on eONE-FORTY 400

Features:

Durable LITE aluminium frame with 143 mm rear wheel travel
Suntour Zeron 36 fork with 150 mm travel and Suntour air rear shock
Shimano CUES 10-speed drivetrain for excellent durability
User-removable 712 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
Full 29" with option to run mixed 'mullet' wheel sizes
Comes fully equipped with lights, mudguards and rack

****NOTE: This bike is available for purchase online, but must be picked up from an approved store.

SPECIFICATIONS

frame	eONE-FORTY LITE IV, MAT aluminium, 133 STR, 27.5x2.8" max. WHS, 148x12 AST, intube,
shock	SR Suntour Edge Plus, platform
fork	SF25-ZERON36X-BOOST,
brake front	Sram DB4 stealth, 4 piston
brake rear	Sram DB4 stealth, 4 piston
rotor front	Sram CenterLine, 200mm
rotor rear	Sram CenterLine, 200mm
chain	Shimano LG500,
crankset	FSA 1x Steel Chainring, 36t
crank length	Shimano FC-EM600, 165 mm for all sizes
derailleur rear	Shimano CUES U6000 GS
cassette	Shimano LG400, 11-48,10,
pedal	VP VPE-533,
grip	MERIDA EXPERT EC,
handlebar	MERIDA EXPERT eTR, 780 WHB
stem	MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
stem size	40 mm all sizes,
headset	Acros ICR MERIDA EXTERNAL neck w/ Blocklock,
hub front	Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock
hub rear	Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
rim	MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29",
saddle	MERIDA COMP SL, V-mount, incl. MERIDA minitool,
seat clamp	MERIDA EXPERT,
shifter front	Shimano SL -MT500-IL,
shifter rear	Shimano CUES U6000-10,
tyre front	MAXXIS REKON, 29x2.4", fold, 3C EXO MaxxTerra,
tyre rear	MAXXIS REKON, 29x2.4", fold, TR 3C EXO MaxxTerra,
light front	Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount
light rear	Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier,
drive unit	Shimano EP801, 85Nm
battery	Shimano BT-EN817, 712Wh
display	Shimano SC-EN600,

SPECIFICATIONS+

SPECIFICATIONS

FRAME	eONE-FORTY LITE IV, MAT aluminium, 133 STR, 27.5x2.8" max. WHS, 148x12 AST, intube,
Shock	SR Suntour Edge Plus, platform
Fork	SF25-ZERON36X-BOOST,
Brake Front	Sram DB4 stealth, 4 piston
Brake Rear	Sram DB4 stealth, 4 piston
ROTOR FRONT	Sram CenterLine, 200mm
ROTOR REAR	Sram CenterLine, 200mm
Chain	Shimano LG500,
Crankset	FSA 1x Steel Chainring, 36t
Crank Length	Shimano FC-EM600, 165 mm for all sizes
DERAILLEUR REAR	Shimano CUES U6000 GS
Cassette	Shimano LG400, 11-48,10,
PEDAL	VP VPE-533,
Grip	MERIDA EXPERT EC,
Handlebar	MERIDA EXPERT eTR, 780 WHB
Stem	MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
Stem Size	40 mm all sizes,
Headset	Acros ICR MERIDA EXTERNAL neck w/ Blocklock,
Hub Front	Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock
Hub Rear	Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
Rim	MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29",
Saddle	MERIDA COMP SL, V-mount, incl. MERIDA minitool,
SEAT CLAMP	MERIDA EXPERT,
SHIFTER FRONT	Shimano SL -MT500-IL,
SHIFTER REAR	Shimano CUES U6000-10,
Tyre Front	MAXXIS REKON, 29x2.4", fold, 3C EXO MaxxTerra,
Tyre Rear	MAXXIS REKON, 29x2.4", fold, TR 3C EXO MaxxTerra,
LIGHT FRONT	Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount
LIGHT REAR	Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier,
DRIVE UNIT	Shimano EP801, 85Nm
Battery	Shimano BT-EN817, 712Wh
Display	Shimano SC-EN600,
Frame Material	Alloy
Fork Material	Alloy
Brake Type	Hydraulic Disc Brake
Groupset Brand	Shimano
Groupset Model	CUES
Fork Brand	Suntour
Motor Brand	Shimano
Max Assisted Speed	32km/h
Battery Brand	Shimano
Motor Type	Mid-Drive Motor
Frame Style	Step-Over
Shifting Type	Mechanical
Pedals Included	Yes
Drivetrain Gearing	1 x 10
Ride Style	Trail

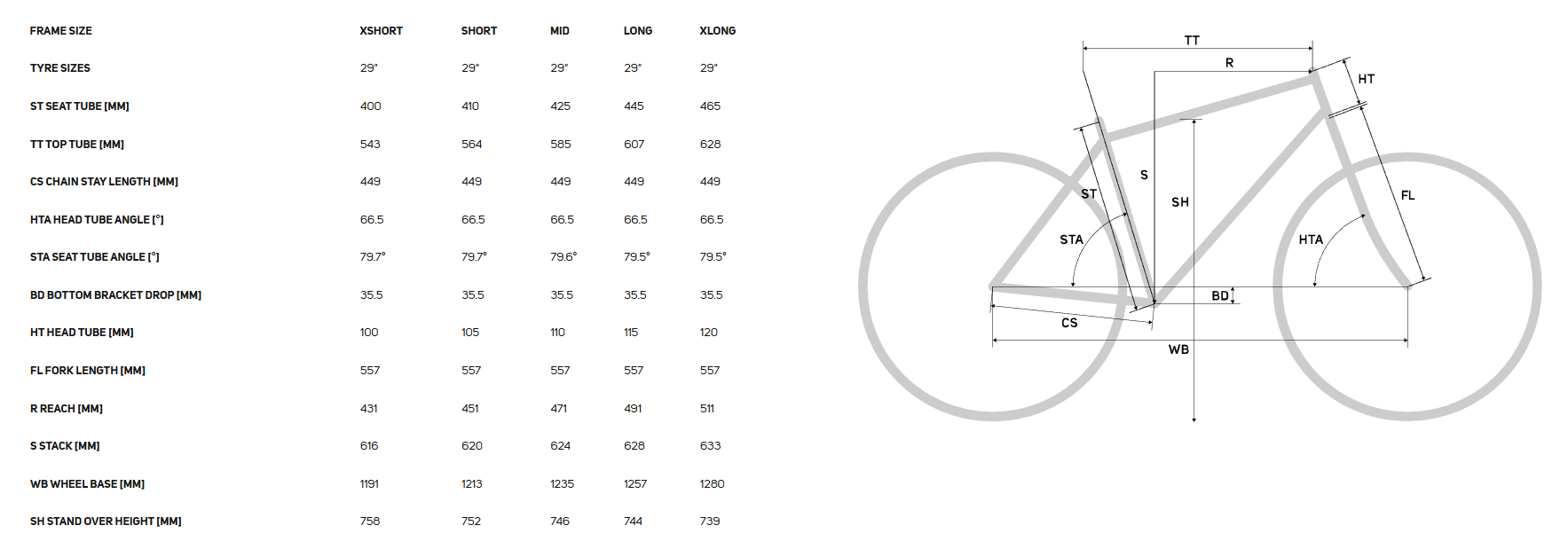

GEOMETRY+

* All specifications listed are subject to change without notice. Please note that our specifications may be impacted by manufacturer component substitution changes caused by high global demand for bikes and resulting supply chain issues in the bike industry. We recommend confirming the specifications with your local Evo Cycles showroom if you have any questions.

Bike Weight: Many brands strive to list the lowest possible weight, but in reality weight can vary based on frame size, finish, hardware and accessories. The most accurate way to determine any bike's weight is to have your local showroom weigh it for you.
