Polygon Syncline DR8 XC MTB - Green

Name: Polygon Syncline DR8 XC MTB - Green
Brand: Polygon
Price: 5999 NZD
Availability: InStock

5999.00

Up to {{finance.term}} Months Interest Free from {{finance.dollars}}.{{finance.cents}} per week with GEM^

*Terms & Conditions apply. ^excludes fees

Product Code: {{selected?.id}}

SIZE/COLOUR

{{variation.name}} (${{formatPrice(variation.price.price)}}) (Pre-order: ETA {{variation.preorderDate}}) ({{variation.supplierMessage}})

CHOOSE AMOUNT

${{variation.price.min}} ${{variation.price.max}}

AMOUNT:

QUANTITY:

INTEREST FREE INTEREST FREE

View which Evo Showrooms have stock

Maintenance Packages

What is a service plan?

Gold service plan $199 - Recommended
Silver service plan $159
Bronze service plan $129
No, I'll service my own bike

Maintenance Packages

What is a service plan?

Finance Options

12 Months Interest Free

Gem Visa / Gem CreditLine
12 MONTHS INTEREST FREE
Minimum purchase Amount $250. Minimum monthly repayments required. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Prevailing interest rate (currently Gem Visa 29.49% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. Paying only the minimum monthly repayment of 3% of the outstanding monthly balance or $20 (whichever is more), will not be sufficient to repay the purchase amount(s) within the promotional period. Amount payable will be shown on your monthly statement. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

12 MONTHS NO PAYMENTS, NO INTEREST
Minimum purchase Amount $250. 12 months interest free with no repayments during the stated period. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Minimum purchase $250. Payment for your purchase will be deferred for the stated period. During this period, no interest will accrue and no monthly payments need to be made. If you do not pay the outstanding balance in full before the end of the deferred payment period, the amount payable will accrue interest and will be included in your monthly statement. Prevailing interest rate (currently Gem Visa 29.49% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

Q Mastercard / Q Card
12 months interest free is available on Long Term Finance purchases in-store and online . Min spend $250. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Minimum monthly payments required. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited.

Learn More

36 Months Interest Free

Gem Visa / Gem CreditLine
36 MONTHS INTEREST FREE
36 Months Interest Free with [Gem Visa/Gem CreditLine] as [an instalment plan advance (Gem Visa)/ a CreditLine Select advance (Gem CreditLine)]. Credit and lending criteria and fees apply, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Minimum purchase $750. Prevailing interest rate (currently Gem Visa 29.49% p.a./Gem CreditLine 29.95% p.a.) applies after any interest free term ends. Paying only the minimum monthly repayment of 3% of the outstanding monthly balance or $20 (whichever is more), will not be sufficient to repay the purchase amount(s) within the promotional period. Amount payable will be shown on your monthly statement. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

36 MONTHS INTEREST FREE WITH EQUAL MONTHLY PAYMENTS
36 months of equal interest free instalments with [Gem Visa/Gem CreditLine] as [an instalment plan advance (Gem Visa)/ a CreditLine Select advance (Gem CreditLine)]. Amount payable will be shown on your monthly statement. Minimum purchase $250. Credit and lending criteria and fees, including a Gem Visa $55 establishment fee and annual fees ($65 Gem Visa (charged $32.50 half yearly) / $65 Gem CreditLine (charged $32.50 half yearly)). Prevailing interest rate (currently Gem Visa 29.49% p.a./ Gem CreditLine 29.95%p.a.) applies after any interest free term ends. For cash advances, an interest rate of 29.95% p.a. and fees of ($2 Gem Visa/$6 Gem CreditLine) applies. Further information on rates and fees can be found at gemfinance.co.nz. Available on participating Gem Visa or Gem CreditLine credit cards only. New customers must apply and be approved for a Gem Visa credit card. Credit provided by Latitude Financial Services Limited.

Q Mastercard / Q Card
36 months interest free is available on Long Term Finance purchases in-store and online . Min spend $250. Offer valid to 30/11/24. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Minimum monthly payments required. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited.

Learn More

See all payment options

Fast but Composed

With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control

No Watt Wasted

Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis

Locked in Precision

Sleek internal routing keeps things quiet

Traction, Wherever You Need It

With 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control

DESCRIPTION+

XC, Reimagined.

The new generation of Syncline: An XC, with full-sus control.

Cross-country racing isn’t what it used to be—and neither is the Syncline. The new Syncline DR takes everything we’ve learned from years of UCI racing and builds it into a carbon full- suspension machine made for the speed, precision, and intensity of modern XC. It’s your edge. For race day. For every day. For the chase.

Features

Fast but Composed

With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control — staying smooth through roots, planted in rock gardens, and precise in switchbacks.

No Watt Wasted

Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis and a threaded BSA73 bottom bracket for maximum stiffness and easy service.

Locked in Precision

Sleek internal routing keeps things quiet, while a 12x148mm Boost thru-axle and UDH hanger deliver rock-solid drivetrain stability when you’re battling for position and precise shifting under pressure.

Traction, Wherever You Need It

From rocky climbs to muddy sprints, with 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control.

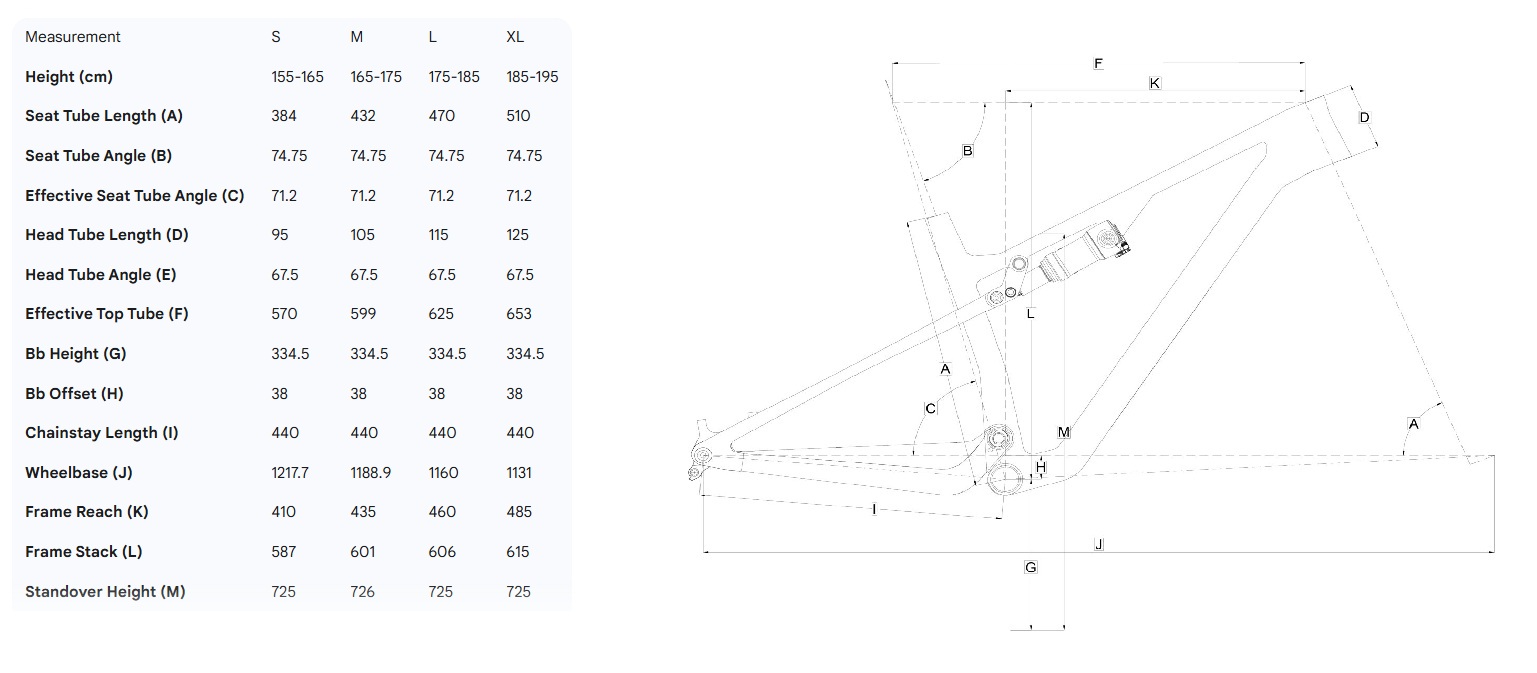

Geometry Made for Modern XC

With modern geometry and a 4-bar flex-stay suspension platform, the Syncline DR is built to take on today’s increasingly demanding XC courses.

SPECIFICATIONS

frame	ACX XC 110mm TRAVEL
fork	FOX 34 SL PERFORMANCE SERIES 120mm TRAVEL
rear shock	FOX FLOAT SL PERFORMANCE ELITE SERIES, E2E- 165x40mm
shifter	SHIMANO XT M8100, 1x12 SPEED
frame color	GREEN METALIC
decal color	WHITE
crank	SHIMANO DEORE XT M8200, 32T
cassette	SHIMANO SLX M7100, 10-51T
rear derailleur	SHIMANO XT M8100-SGS
bottom bracket	SHIMANO MT801 BSA THREADED
chain	KMC X-12
pedal	Alloy Flat W/ Replaceable Pin
saddle	FIZIK TERRA ARGO X7, CR-MO ø 7mm
seatpost	TRANZ-X JD-YSP23J 125mm TRAVEL, DxL- 31.6x412mm
handlebar	POLYGON EXPERT, W- 760mm, BB- 31.8mm, R/D- 5mm, B- 9degree
stem	POLYGON EXPERT, E- 70mm, BB- 31.8m, R/D- -17degree
headset	FSA NO.69/59/SRS/DUAL, IS 52/28.6 \| IS 52/40
wheel set	NOVATEC M30 CARBON
tire	MAXXIS REKON RACE 29"x2.35"
rim	CARBON W- 30mm 622-29 32H FOR TYRE 622-54/76 TL READY
hub	F- NOVATEC BOOST 15x110mm 32H CL / R- NOVATEC 12x148mm 32H CL FOR MICRO SPLINE
spokes	F- STAINLESS NDS-290 DS-293 W/ 12mm BRASS NIPPLE / R- STAINLESS NDS-291 DS-289 W/ 12mm BRASS NIPPLE
brake lever	SHIMANO DEORE XT M8200
brake caliper	SHIMANO DEORE XT HYDRAULIC DISC
rotor	SHIMANO RT64, R-160mm / F-180mm

SPECIFICATIONS+

SPECIFICATIONS

Frame Material	Carbon
Fork Material	Alloy
Brake Type	Hydraulic Disc Brake
Groupset Brand	Shimano
Groupset Model	Deore
Fork Brand	Fox
Fork Travel	101 - 120mm
Shock Travel	0 - 100mm
Shifting Type	Mechanical
Pedals Included	No
Drivetrain Gearing	1 x 12
Ride Style	Cross Country
FRAME	ACX XC 110mm TRAVEL
Fork	FOX 34 SL PERFORMANCE SERIES 120mm TRAVEL
REAR SHOCK	FOX FLOAT SL PERFORMANCE ELITE SERIES, E2E- 165x40mm
Shifter	SHIMANO XT M8100, 1x12 SPEED
FRAME COLOR	GREEN METALIC
DECAL COLOR	WHITE
CRANK	SHIMANO DEORE XT M8200, 32T
Cassette	SHIMANO SLX M7100, 10-51T
Rear Derailleur	SHIMANO XT M8100-SGS
Bottom Bracket	SHIMANO MT801 BSA THREADED
Chain	KMC X-12
PEDAL	Alloy Flat W/ Replaceable Pin
Saddle	FIZIK TERRA ARGO X7, CR-MO ø 7mm
Seatpost	TRANZ-X JD-YSP23J 125mm TRAVEL, DxL- 31.6x412mm
Handlebar	POLYGON EXPERT, W- 760mm, BB- 31.8mm, R/D- 5mm, B- 9degree
Stem	POLYGON EXPERT, E- 70mm, BB- 31.8m, R/D- -17degree
Headset	FSA NO.69/59/SRS/DUAL, IS 52/28.6 \| IS 52/40
Wheel Set	NOVATEC M30 CARBON
TIRE	MAXXIS REKON RACE 29"x2.35"
Rim	CARBON W- 30mm 622-29 32H FOR TYRE 622-54/76 TL READY
Hub	F- NOVATEC BOOST 15x110mm 32H CL / R- NOVATEC 12x148mm 32H CL FOR MICRO SPLINE
SPOKES	F- STAINLESS NDS-290 DS-293 W/ 12mm BRASS NIPPLE / R- STAINLESS NDS-291 DS-289 W/ 12mm BRASS NIPPLE
Brake lever	SHIMANO DEORE XT M8200
BRAKE CALIPER	SHIMANO DEORE XT HYDRAULIC DISC
Rotor	SHIMANO RT64, R-160mm / F-180mm
Fast but Composed	With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control
No Watt Wasted	Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis
Locked in Precision	Sleek internal routing keeps things quiet
Traction, Wherever You Need It	With 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control
