Downhill Demolition - The Return Of Dh Era.
You can never truly leave DH! We are back, making waves in the biking world once again with the long-awaited release of our newest addition to the DH scene. Since the 2018 XQUARONE DH bike, we've been crafting and perfecting our latest offering, and now, we're thrilled to unveil the result of years of development, the Collosus DH.The Collosus DH9 downhill mountain bike was born from our Collosus N enduro mountain bike, which was tested extensively by the PFR team at EDR for two seasons. We realized the demand for something bigger, bolder, and more suited to the rigors of racing and aggressive riding. The Collosus DH9 downhill MTB has been meticulously designed with versatility in mind. With 4 different geometry configurations, riders can tailor their experience, seamlessly transitioning from playful park rides to dominating the downhill course.
Multiple setup possibilities
The Collosus DH offers 4 geometry configurations using two flip-chips. Riders can fine-tune the bottom bracket position for either a mullet setup with a 27.5” rear wheel or a full 29er configuration. When using a smaller rear wheel, set the flip chip in its tallest position to maintain rear center height. Switching to a 29” rear wheel allows the frame to drop down, ensuring a consistent riding position across wheel sizes.

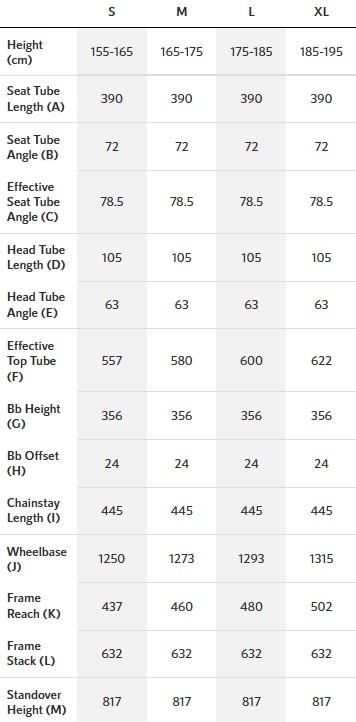

Dial In Your Perfect Geometry
With a 1.5” headset, riders can further customize their ride by fitting aftermarket angle-adjust cups, dialing in the perfect geometry for their style and terrain.
No Compromise
Our innovative 6-bar independent floating suspension is engineered to control wheel path and anti-squat independently to the leverage curve, ensuring optimal performance across varied terrain.
UDH Compatibility for Next-Gen Shifting
With the UDH dropouts, the Collosus DH is now compatible with T-Type drivetrains for seamless integration with modern shifting systems.
| chain | KMC X11 |
| rear derailleur | SRAM X01 DH |
| decal color | KHASIMA GLOSS |
| pedal | ALLOY W/ REPLACEABLE PIN |
| brake lever | TRP DH-R EVO |
| saddle | LINC XTENT |
| frameset | ALX DOWNHILL 200mm TRAVEL |
| fork | FOX 40 FACTORY SERIES KASHIMA COAT, AIR SPRING, TRAVEL-203mm, GRIP 2, HSC, LSC, HSR, LSR |
| rear shock | FOX FLOAT X2 FACTORY SERIES KASHIMA COAT, E2E - METRIC 250x75mm |
| frame color | BLUE SHAPIRE |
| shifter | SRAM X01 DH, 1x7-SPEED TRIGGER |
| crank | SRAM DESCENDANT DH, 34T |
| cassette | SRAM PG720, 11-25T |
| bb | SRAM DUB BSA 83mm |
| seatpost | POLYGON EXPERT, DxL - 34,9 X 320mm |
| handlebar | RACEFACE ATLAS 35, W - 820mm, BB - 35mm, R/D - 35mm, B - 8degree |
| handlestem | RACEFACE ATLAS 35 DIRECT MOUNT, EXT - 50mm, BB - 35mm, R/D - 0degree |
| headset | FSA NO.55/57-1, ZS 56/28.6 | ZS 56/30 |
| wheel set | DT-SWISS |
| tire | SCHWALBE TACKY CHAN ADDIX SOFT FRONT - 29"x2.4" (622-62) ; REAR - 27.5"x2.4" (584-62) |
| rim | F - DT-SWISS FR-541 622MM(29), 32H / R - DT-SWISS FR-541 584MM(27.5), 32H |
| hub | F - DT-SWISS 240 THRU AXLE 20x110mm 32H 6BOLT / R - DT-SWISS 240 THRU AXLE 12x157mm 32H 6BOLT |
| spokes | F - J-BEND NDS-288mm DS-292mm W/ 14Gx14MM BRASS NIPPLE / R - J-BEND NDS-272mm DS-272mm W/ 14Gx14MM BRASS NIPPLE |
| brake caliper | TRP DH-R EVO HYDRAULIC DISC |
| rotor | TRP RS01E 203mm, 6BOLT |
| Chain | KMC X11 |
| Frame Material | Alloy |
| Groupset Brand | Sram |
| Fork Brand | Fox |
| Groupset Model | X01 Eagle |
| Fork Travel | 171 - 220mm |
| Shock Travel | 171 - 220mm |
| Shifting Type | Mechanical |
| Pedals Included | No |
| Rear Derailleur | SRAM X01 DH |
| Ride Style | Downhill |
| Fork Material | Suspension |
| Brake Type | Hydraulic Disc Brake |
| Drivetrain Gearing | 1 x 7 |
| DECAL COLOR | KHASIMA GLOSS |
| PEDAL | ALLOY W/ REPLACEABLE PIN |
| Brake lever | TRP DH-R EVO |
| Saddle | LINC XTENT |
| Frameset | ALX DOWNHILL 200mm TRAVEL |
| Fork | FOX 40 FACTORY SERIES KASHIMA COAT, AIR SPRING, TRAVEL-203mm, GRIP 2, HSC, LSC, HSR, LSR |
| REAR SHOCK | FOX FLOAT X2 FACTORY SERIES KASHIMA COAT, E2E - METRIC 250x75mm |
| FRAME COLOR | BLUE SHAPIRE |
| Shifter | SRAM X01 DH, 1x7-SPEED TRIGGER |
| CRANK | SRAM DESCENDANT DH, 34T |
| Cassette | SRAM PG720, 11-25T |
| BB | SRAM DUB BSA 83mm |
| Seatpost | POLYGON EXPERT, DxL - 34,9 X 320mm |
| Handlebar | RACEFACE ATLAS 35, W - 820mm, BB - 35mm, R/D - 35mm, B - 8degree |
| Handlestem | RACEFACE ATLAS 35 DIRECT MOUNT, EXT - 50mm, BB - 35mm, R/D - 0degree |
| Headset | FSA NO.55/57-1, ZS 56/28.6 | ZS 56/30 |
| Wheel Set | DT-SWISS |
| TIRE | SCHWALBE TACKY CHAN ADDIX SOFT FRONT - 29"x2.4" (622-62) ; REAR - 27.5"x2.4" (584-62) |
| Rim | F - DT-SWISS FR-541 622MM(29), 32H / R - DT-SWISS FR-541 584MM(27.5), 32H |
| Hub | F - DT-SWISS 240 THRU AXLE 20x110mm 32H 6BOLT / R - DT-SWISS 240 THRU AXLE 12x157mm 32H 6BOLT |
| SPOKES | F - J-BEND NDS-288mm DS-292mm W/ 14Gx14MM BRASS NIPPLE / R - J-BEND NDS-272mm DS-272mm W/ 14Gx14MM BRASS NIPPLE |
| BRAKE CALIPER | TRP DH-R EVO HYDRAULIC DISC |
| Rotor | TRP RS01E 203mm, 6BOLT |
