Name: 2025 Giant Trance X Advanced 1 Arctic Light
Price: 10499 NZD
Availability: SoldOut

2025 Giant Trance X Advanced 1 Arctic Light

DESCRIPTION
GEOMETRY

DESCRIPTION+

FLOAT UP TECHNICAL CLIMBS AND SAIL DOWN CHUNKY DESCENTS

This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.

More Travel - New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

Adjustable trail geometry - A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

Rear wheel options - All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.

HIGHLIGHTS

A new Advanced-grade composite frameset with Maestro suspension offers 5mm added travel compared to the previous generation, going from 135mm to 140mm. The rear suspension is paired with a 150mm fork. The frame is equipped with two, three-position flip chips for the ultimate in versatility and adjustability. The rear flip chip, located on the Maestro rocker arm, lets you adjust frame geometry and fine-tune handling for riding style and terrain. A second flip chip at the headset makes it easy to change the reach, offering 10mm (-5mm, 0mm or +5mm) of adjustment without having to swap your stem. Also new is an integrated down tube storage compartment to carry trail-riding essentials.

Advanced Composite - High-performance grade raw carbon is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.
Maestro Suspension - Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.
Advanced Forged Composite - A high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
Adjustable Frame Geometry - Flip chip adjustability lets you switch between three settings depending on the terrain you are riding. You can select a 64.4, 64.8 or 65.1-degree head angle and corresponding 76.8, 77.2 or 77.5-degree seat tube angle, resulting in a 40, 35 or 30mm bottom bracket drop (size medium).
Reach Adjust - Three-position flip chip at the headset lets riders dial in cockpit dimensions and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.
Frame Storage - New integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.
MegaDrive - A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.
Integrated Frame Protection - The driveside chainstay and down tube feature built-in protection against rocks and debris. A clear 3M protective strip on the underside of the head tube/down tube junction protects the frame when it’s loaded onto a shuttle vehicle.
Boost Technology - Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
Giant Tubeless System - Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.

****NOTE: This bike is available for purchase online, but must be picked up from an approved store.

SPECIFICATIONS

frame	Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
fork	Fox 36 Performance Elite, GRIPX2, 44mm offset, 150mm travel, Boost 15x110 Kabolt X, 44mm offset, custom tuned for Giant
shock	Fox Float X Performance Elite, 2 position lever with LSC adjust, Trunnion, custom tuned for Giant
handlebar	Giant Contact SLR TR35, composite, 35mm
stem	Giant Contact SL 35 / S - 40mm, M - 40mm, L - 50mm, XL - 50mm
seatpost	Giant Contact Switch AT dropper, adjustable travel, remote, 30.9
saddle	Giant Romero SL
pedals	N/A
shifters	SRAM AXS Pod, 1x12
front derailleur	N/A
rear derailleur	SRAM GX Eagle T-Type AXS
brakes	Shimano Deore XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
brake levers	Shimano Deore XT BL-M8100
cassette	SRAM GX, T-Type 10x52
chain	SRAM GX T-Type
crankset	SRAM GX T-Type, 30t, 55mm chainline / S - 165mm, M - 170mm, L - 170mm, XL - 170mm
bottom bracket	SRAM DUB, press fit
rims	Giant TRX Hookless Tubeless ready Carbon 29" 30mm inner width
hubs	Giant TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
spokes	Sapim Lite [R] Race [F]
tires	[F] Maxxis Minion DHF 29x2.5WT, 60 TPI, 3C Max Terra, EXO, TR / [R] Maxxis Dissector 29x2.4WT, 60 TPI, 3C Max Terra, EXO, TR
extras	Tubeless prepared, max tyre size 2.5", max chainring size 34t

SPECIFICATIONS+

SPECIFICATIONS

Frame Material	Carbon
Fork Material	Suspension
Brake Type	Hydraulic Disc Brake
Groupset Brand	Sram
Groupset Model	GX Eagle AXS T-Type
Fork Brand	Fox
Fork Travel	141 - 170mm
Shock Travel	121 - 140mm
Shifting Type	Electronic
Pedals Included	No
Drivetrain Gearing	1 x 12
Ride Style	Trail
FRAME	Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork	Fox 36 Performance Elite, GRIPX2, 44mm offset, 150mm travel, Boost 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock	Fox Float X Performance Elite, 2 position lever with LSC adjust, Trunnion, custom tuned for Giant
Handlebar	Giant Contact SLR TR35, composite, 35mm
Stem	Giant Contact SL 35 / S - 40mm, M - 40mm, L - 50mm, XL - 50mm
Seatpost	Giant Contact Switch AT dropper, adjustable travel, remote, 30.9
Saddle	Giant Romero SL
PEDALS	N/A
Shifters	SRAM AXS Pod, 1x12
Front Derailleur	N/A
Rear Derailleur	SRAM GX Eagle T-Type AXS
BRAKES	Shimano Deore XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers	Shimano Deore XT BL-M8100
Cassette	SRAM GX, T-Type 10x52
Chain	SRAM GX T-Type
Crankset	SRAM GX T-Type, 30t, 55mm chainline / S - 165mm, M - 170mm, L - 170mm, XL - 170mm
Bottom Bracket	SRAM DUB, press fit
RIMS	Giant TRX Hookless Tubeless ready Carbon 29" 30mm inner width
HUBS	Giant TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
SPOKES	Sapim Lite [R] Race [F]
Tires	[F] Maxxis Minion DHF 29x2.5WT, 60 TPI, 3C Max Terra, EXO, TR / [R] Maxxis Dissector 29x2.4WT, 60 TPI, 3C Max Terra, EXO, TR
EXTRAS	Tubeless prepared, max tyre size 2.5", max chainring size 34t

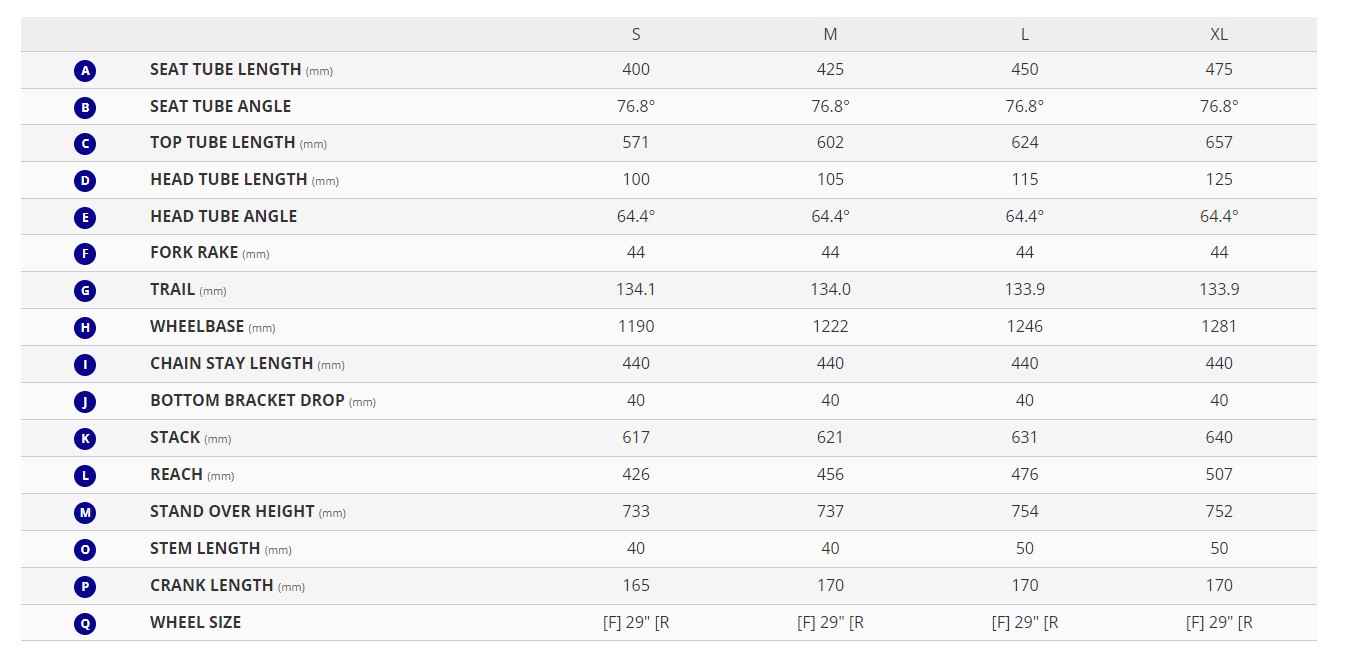

GEOMETRY+

* All specifications listed are subject to change without notice. Please note that our specifications may be impacted by manufacturer component substitution changes caused by high global demand for bikes and resulting supply chain issues in the bike industry. We recommend confirming the specifications with your local Evo Cycles showroom if you have any questions.

Bike Weight: Many brands strive to list the lowest possible weight, but in reality weight can vary based on frame size, finish, hardware and accessories. The most accurate way to determine any bike's weight is to have your local showroom weigh it for you.
